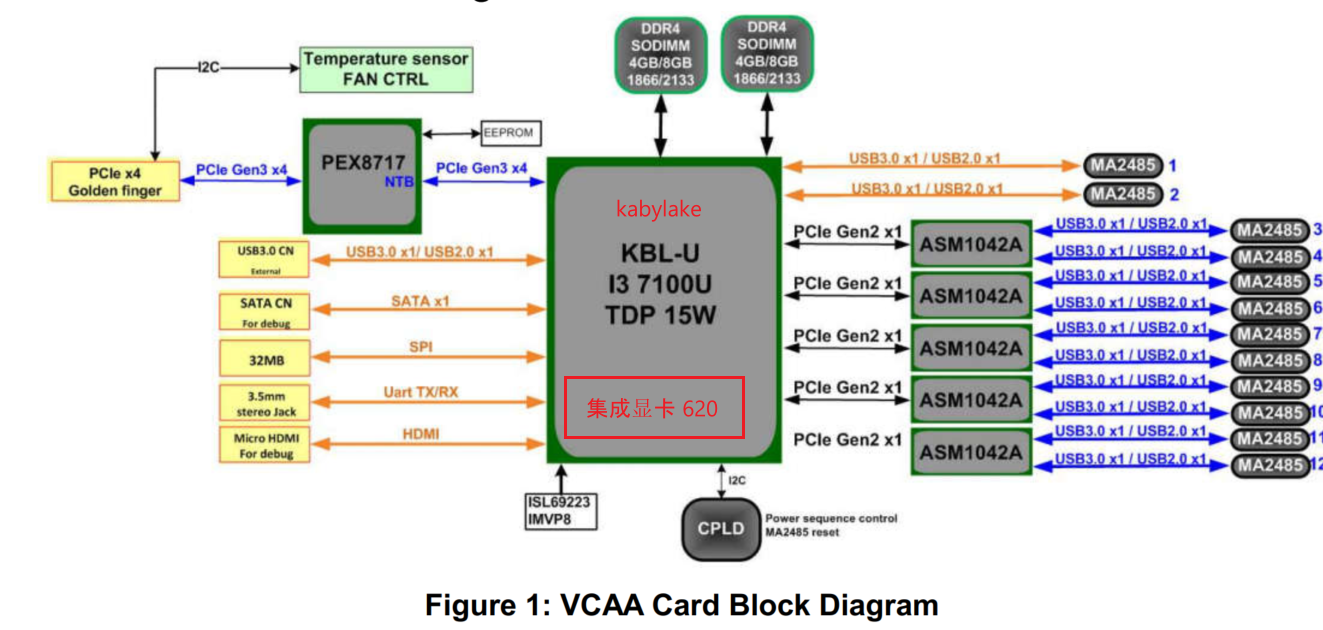

vca卡的内部结构
Host上vca software安装

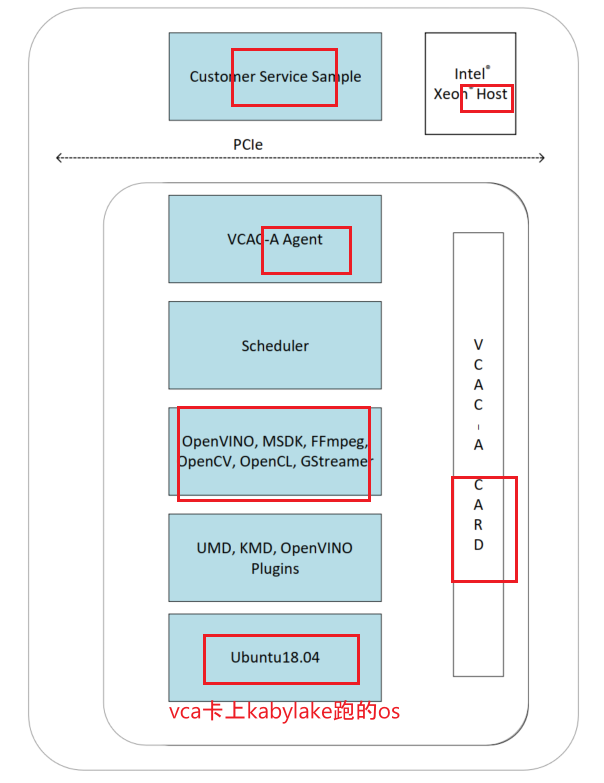

service跑在host上，agent和其他的workload都跑在vca卡上，卡上有个单独的os，ubuntu1804。
下载software packages源码 1 2 3 4 5 6 7 8 9 10 11 12 13 $ git clone https://github.com/OpenVisualCloud/VCAC-SW-Analytics.git -b release/VCAC-A/R6 $ tree -L 2 . ├── Documents # 平平无奇的文档 │ ├── VCAC-Analytics-releasenotes-rev6-0.pdf │ └── VCAC-Analytics-software-installation-guide-rev6-0.pdf ├── Intel_Media_Analytics_Host # Host files │ ├── scripts # scripts to build kernel and vca driver module │ └── tar # kernel patch, vca driver patch and utilities └── Intel_Media_Analytics_Node # Software packages ├── scripts # scripte to build ubunut1804 image and dockerfiles └── tar # patch for kernel on card, install pkg for VPU metrics

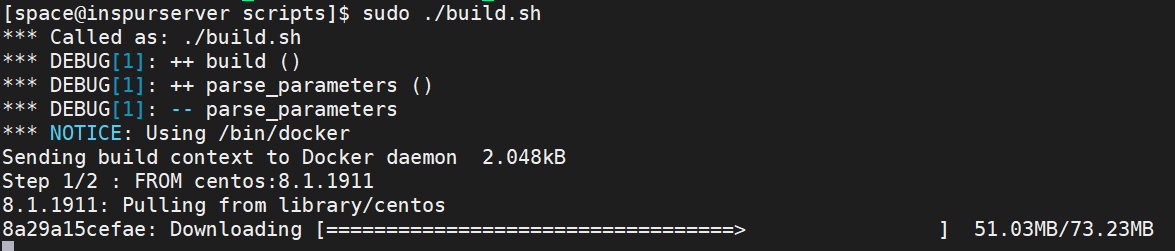

使用docker在容器里build安装包 在host上 用docker启动容器，去build一些软件包，等等。
1 2 $ docker info | grep Dir Docker Root Dir: /var/lib/docker
这个docker目录最多只有50GB，不够去build vcad，可能会报错"no space left on device" , 所以我们需要换一个Docker Root Dir。
1 2 3 4 5 6 7 8 9 10 11 12 13 $ vim /usr/lib/systemd/system/docker.service" # add "--graph /home/docker" after "ExecStart=/user/bin/dockerd $ cat /usr/lib/systemd/system/docker.service | grep graph ExecStart=/usr/bin/dockerd --graph /home/docker -H fd:// --containerd=/run/containerd/containerd.sock # 重启 $ systemctl daemon-reload $ systemctl restart docker # 再查看一下，已经改好了 $ docker info | grep Dir Docker Root Dir: /home/docker

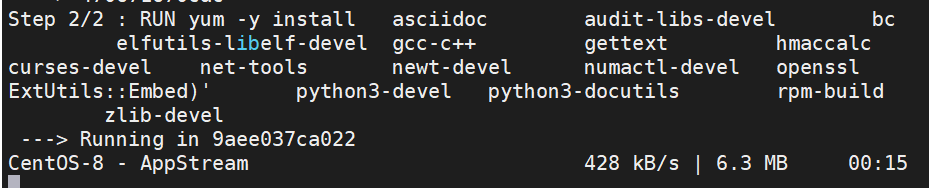

拉取centos8的image
安装一些需要的pkg
1 2 3 4 5 6 7 8 9 [space@inspurserver CentOS8]$ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES d4ecdebab101 vcaa/centos-8.1-test:1.0 "/home/space/VCAC-SW…" About a minute ago Up About a minute sleepy_ride # pwd : /home/space/VCAC-SW-Analytics/VCAC-A/Intel_Media_Analytics_Host/scripts $ sudo ./build.sh # pwd : /home/space/VCAC-SW-Analytics/VCAC-A/Intel_Media_Analytics_Node/scripts $ sudo ./vcad_build.sh -o EXTENDED
安装新kernel，vca软件等 用生成的包，去换kernel，安装host上的vca daemon，vca cli， kernel， kernel-devel等等。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 # 安装kernel包 $ sudo yum -y localinstall kernel-4.18.0-147_1.fb4dfe2.VCA+-1.x86_64.rpm $ sudo yum -y localinstall kernel-devel-4.18.0-147_1.fb4dfe2.VCA+-1.x86_64.rpm # 安装vca driver module $ sudo yum -y localinstall vcass-modules-4.18.0-147_1.fb4dfe2.VCA +-1.690990a-0.x86_64.rpm # 安装vca daemon $ sudo yum -y localinstall daemon-vca-2.7.3-centos8-x86_64.rpm $ sudo yum -y localinstall ../../tar/Centos8/vca_query-1.0_centos8-1.x86_64.rpm # 换default kernel，参考 https://www.golinuxcloud.com/change-default-kernel-version-rhel-centos-8/ sudo grubby --set-default "/boot/vmlinuz-4.18.0.0e222f9.VCA+" # reboot $ sudo reboot # 开机之后验证kernel更换成功 $ uname -r 4.18.0.0e222f9.VCA+
enable iommu 其实我之前设置了intel_iommu=on ，但是由于换了kernel，之前那个kernel的cmdline不起作用了。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 # 在这里重新设置一下 $ cat /boot/grub2/grubenv # GRUB Environment Block saved_entry=4f71b0d5929445139ae33f60b7e05767-4.18.0.0e222f9.VCA+ kernelopts=root=LABEL=cloudimg-rootfs ro console=ttyS0,115200n8 no_timer_check net.ifnames=0 crashkernel=auto rd.auto=1 intel_iommu=on boot_success=1 boot_indeterminate=0 $ sudo reboot # 然后就可以看到使能好的iommu groups了！ $ ls /sys/kernel/iommu_groups/ 0 11 14 17 2 22 25 28 30 33 36 39 41 44 47 5 52 55 58 60 63 66 # check cmdline $ cat /proc/cmdline BOOT_IMAGE=(hd0,gpt1)/boot/vmlinuz-4.18.0.0e222f9.VCA+ root=LABEL=cloudimg-rootfs ro console=ttyS0,115200n8 no_timer_check net.ifnames=0 crashkernel=auto rd.auto=1 intel_iommu=on
验证 1 2 3 4 5 6 7 8 9 10 11 12 13 # 报错！因为不是root权限 $ vcactl info BIOS 0 0 ERROR: could not parse vca configuration file! $ sudo su # 成功！ $ vcactl status Card: 0 Cpu: 0 STATE: bios_up # 报错，这个时候ubuntu1804和host的网络还没有配置好 $ sudo vcactl network ip ERROR: Card: 0 Cpu: 0 - Card needs to be in "os_ready", "net_device_ready", "dhcp_error", "net_device_no_ip", "dhcp_in_progress" or "dhcp_done" state!
在vca卡上载入ubuntu os 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 # 关闭已打开的块设备 $ vcactl blockio close 0 0 vcablk0 WARNING: Card: 0 Cpu: 0 - Block device vcablk0 is not open. You do not need to close it. # 在build好的ubuntu的image加载进vca卡中 $ vcactl blockio open 0 0 vcablk0 RW /home/space/VCAC-SW-Analytics/VCAC-A/Intel_Media_Analytics_Node/build/vcad/INSTALL/vca_disk48_k5.3_ubuntu18.04_1.0.1.vcad # 查看 $ vcactl status Card: 0 Cpu: 0 STATE: bios_ready # 在bios_ready之后，需要重启一下vca卡，使其生效 # 关机 $ vcactl pwrbtn-long 0 0 $ vcactl status Card: 0 Cpu: 0 STATE: power_off # 开机 $ vcactl pwrbtn-short 0 0 $ vcactl reset 0 0 --force $ vcactl boot 0 0 vcablk0 --force $ vcactl status Card: 0 Cpu: 0 STATE: booting $ vcactl status $ vcactl network ip Card 0 Cpu 0: 172.32.1.1 # 密码是vista1 $ ssh root@172.32.1.1 # 到这里，vca卡的os也安装完毕了！
vca卡上os，可以和host相互ping通，
但连接不上internet。dns也没有设置好。
1 2 3 4 5 6 root@vca_node_00:~# wget www.baidu.com --2021-02-02 15:06:13-- http://www.baidu.com/ Resolving www.baidu.com (www.baidu.com)... failed: Temporary failure in name resolution. wget: unable to resolve host address 'www.baidu.com' root@vca_node_00:~# ping baidu.com ping: baidu.com: Temporary failure in name resolution
vca & host 网络配置 在host上
1 2 3 4 5 # config proxy touch /etc/yum.repos.d/10proxy vim 10proxy Acquire::http::Proxy " local network http proxy "; scp /etc/yum.repos.d/10proxy root@172.32.1.1:/etc/apt/apt.conf.d/10proxy
1 2 # config dns scp /etc/resolv.conf root@172.32.1.1:/etc
1 2 3 4 # disable firewall systemctl stop firewalld.service systemctl disable firewalld.service systemctl status firewalld.service
1 2 # enable ip forwarding in host kernel echo 1 > /proc/sys/net/ipv4/ip_forward
1 2 # add rules to NAT iptables -t nat -A POSTROUTING -s 172.32.1.1 -d 0/0 -j MASQUERADE
在VCA卡上
1 2 3 4 5 6 7 8 ssh root@172.32.1.1 # configure proxy # host没有proxy的时候，可以不设置 $ vim ~/.bashrc export https_proxy=" local network https proxy" export http_proxy=" local network http proxy" export ftp_proxy=" local network ftp proxy"
测试 1 2 wget www.baidu.com wget www.google.com
VCA卡应该和host有一样的网络连通能力。
在vca卡上安装software Load SMBus driver
1 2 3 $ apt update $ modprobe i2c-i801 $ modprobe i2c-dev
Load HDDL driver
1 2 3 4 5 6 $ insmod /lib/modules/5.3.18-1.9bf7f75.vca+/kernel/drivers/ion/myd_ion.ko $ insmod /lib/modules/5.3.18-1.9bf7f75.vca+/kernel/drivers/usb/myd/myd_vsc.ko $ lsmod | grep myd myd_vsc 24576 0 myd_ion 49152 0
